1993 Toyota Supra NA-T conversion
Project E85 Supra
Started 09/15/07
Finished------never until I sell it
Click here for updates - latest update - 12/07/07
The Car
The car is a 1993 Alpine Silver Toyota Supra Targa non-turbo. I purchased in June of 2007, and 3 months later in September
the car was turbocharged.
The Mods
Cometic 1.9mm HG
ARP head studs
4" stainless exhaust
XSPower manifold
XSPower IC
XSPower 70mm turbo
XSPower WG
XSPower 38mm WG
1600cc injectors
Weldon fuel pump
-10AN fuel lines split to -8AN dual feed rail
Aremotive AFPR
AEM EMS +5 bar sensor
AEM wide band
AEM boost solenoid
MSD 6AL ignition
Custom 3" - 3 1/2" IC piping
TT trans with modified valve body
custom VW style intake with velocity stacks (gained 20cfm per runner over stock manifold)
Q45 TB
Engine Prep for Turbo
 |
| engine |
I first started off by drilling out the oil return hole in the aluminum oil pan. This was a
a little harder than on my GS300. On the GS300, you can remove the oil pan without pulling
the motor. This in not the case on the supra, so you have to be careful not to get aluminum
filings in the engine. I was not this carefull, and ended up pulling the motor to finish the job.
Not a big deal since I was changing the head gasket anyway with a Cometic 1.9mm head gaset and ARP
head studs.
Turbo Setup
 |
| turbo |
For now I am using an XSPower T61(70mm) turbo and going to push it for all it's worth.
The turbo feed line is a -4an custom steel braided teflon line that comes from a modified oil filter
bolt that was drilled and tapped for the -4an fitting. The return also uses a custom
fit -10an steel braided teflon line. The XSPower manifold was also clocked in order for the
4" intake of the turbo to clear the distributor.
Exhaust
 |
| Exhaust |

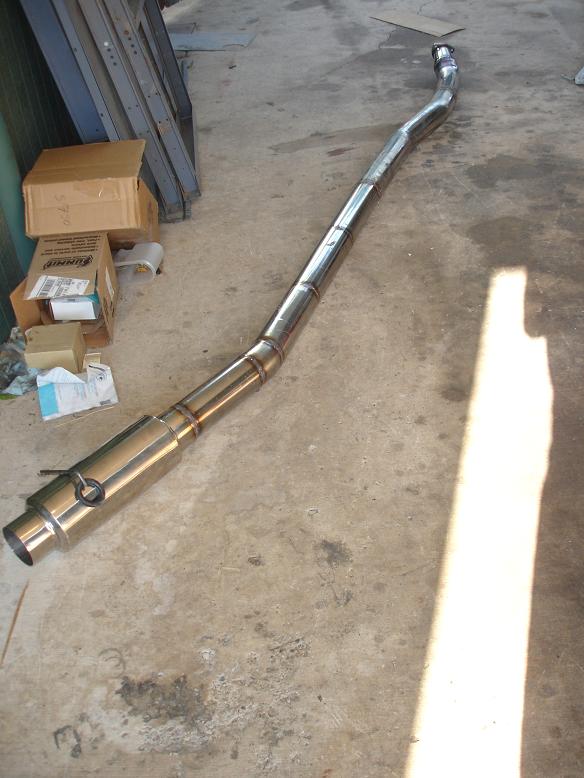

The downpipe is a 3" stainless pipe from the XS kit, then modified to fit the clocked turbo. A custom
made 3"-4" adapter was made to bolt up the 4" exhaust. The exhuast is made from 4" 409 Stainless
tailpipe. The tailpipes utilize mandrel bends, and are cut then re-welded to get the desired exhaust
shape.
 |
| Mufller |
The 4" exhaust ais then fed through a 4" strait through muffler. It is rather noisy, and will
probably find a nice chamberd muffler to help reduce the noise. For daily driving, it gets annyoing
quickly, causing any loose object in the car to rattle. WOT sounds really nice though. I will
probably use a v-band for rapid swap out.
Intake Manifold
 |
| Intake |
The intake is a custom made intake using 4" aluminum piping, and 1/4" aluminum sheet metal.
Velocity stacks were manual spun out of 3" bar stock on a manual lathe, then flow tested
within 2cfm. The stock NA manifold was cut short, and the aluminum plate was cut out with a hold
 |
| Intake with fuel rail |
saw to fit each runner, then welded. Each velocity stack was then welded to the top of each runner.
Using several specified pieces of 1/4" aluminum sheet, the manifold was assembled and welded together
to form a nice tapered design to the thottle body plate. A Q45 flange was used for the larger 90mm
Q45 throttle body.
